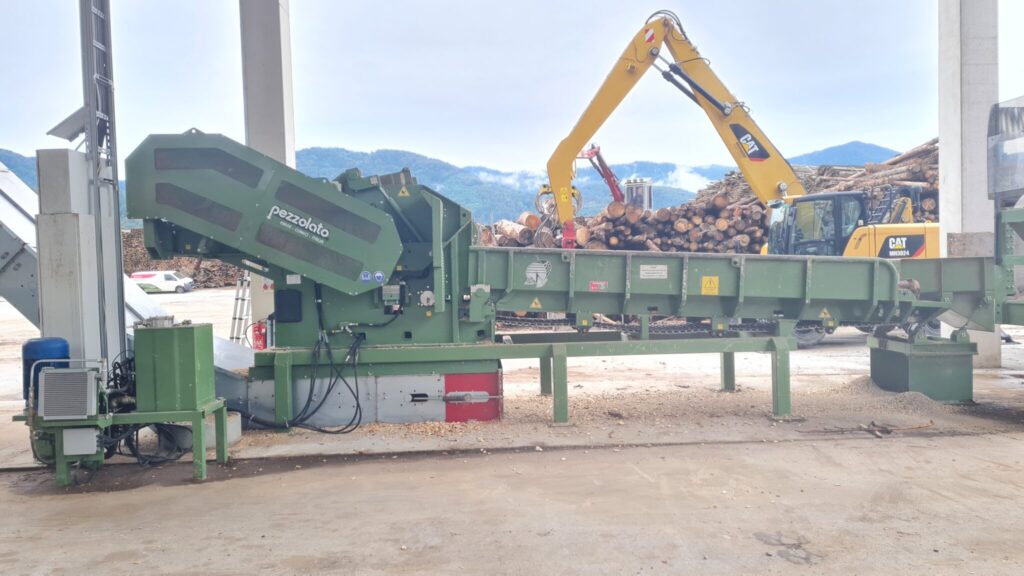

PTH 1000/1000 E
Classification:
Stationary Electric Drum Chipper
- Static machine
- HEAVY DUTY drum: required power 250 kW;
- Number of feed rollers: upper 1, lower 2 (hydraulic drive)
- Transmission with V-belt
- Interchangeable grid for output chip calibration
- Deflector for ground chip discharge
- Electronic No Stress device

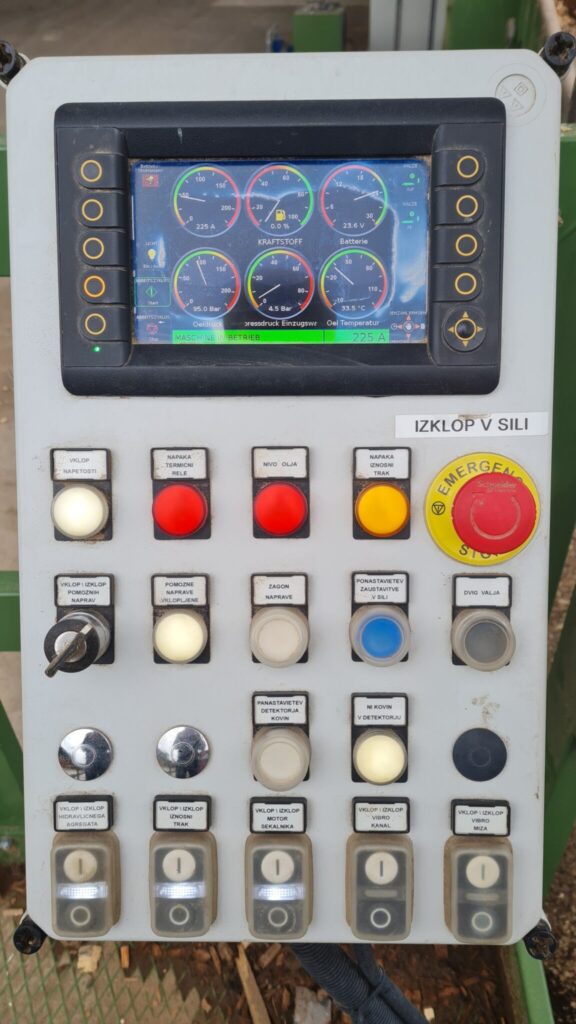

- LCD display for managing all functions
- For operator-free feeding, maximum log diameter: 450 mm
- Remote control
- Equipped with a drop-down counterblade
- Equipped with hydraulic legs to facilitate machine movement
Technical Data Sheet
| Year of construction | 2019 | |
| Material passage | mm | 1000x600 |
| Drum width | mm | 1000 |
| Length of toothed feeding chain for logs | mm | 5000 |
| Production per hour | m³/h | 120/180 |
| Knives | n° | 3 |
Used Machine Classification
| Sold by customer | |
| As seen and liked | |
| Overhauled with warranty | |
| New, ex demo, ready for delivery |
